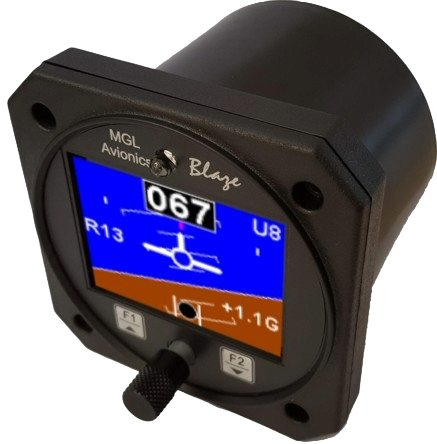

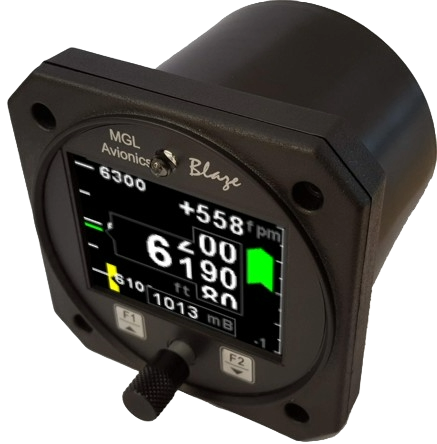

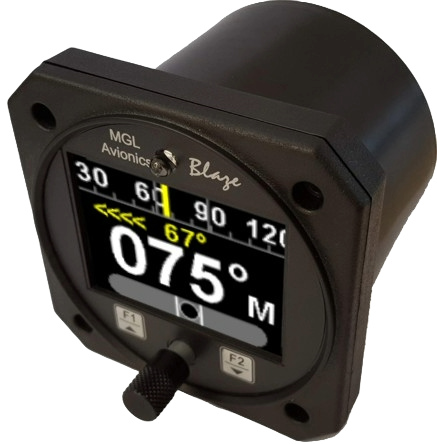

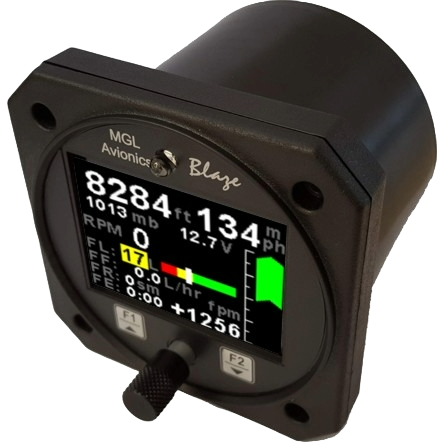

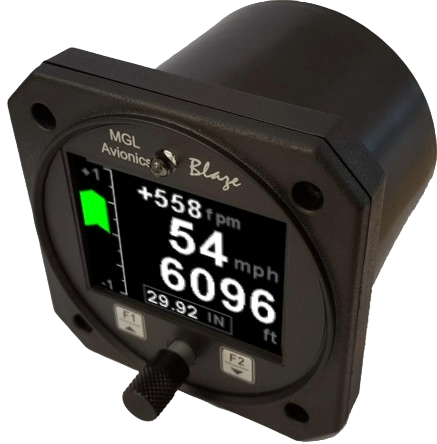

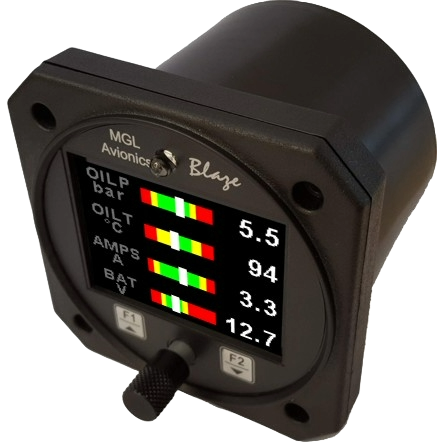

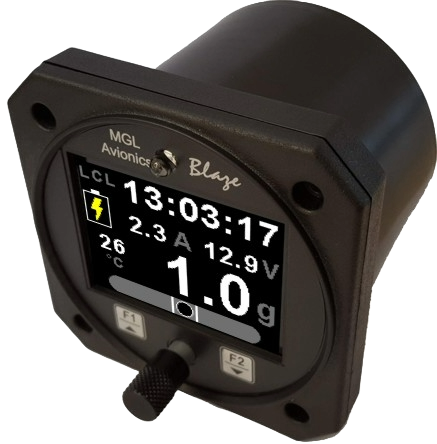

Blaze Series... The StratoMaster Blaze range consists of sixteen  3 1/8" (80mm) color display instruments. Using a high resolution color graphics display, these instruments provide excellent daylight readability, even in direct sunlight. In addition they all have built in backlighting making them easy to read in low light conditions. The Blaze instrument includes a rotary control plus 2 independent keys for easy menu navigation and to access instrument specific features. The Blaze range also has a wide supply voltage range of 8 to 30V DC with with built in reverse and over voltage protection. All engine monitoring Vega instruments have the ability to interface to a MGL Avionics RDAC unit. Our Avionic products are exclusively distributed world wide by MGL Avionics. Please see www.mglavionics.co.za for more information.  Blaze dimensional drawing Blaze firmware upgrade procedure Blaze Firmware Blaze firmware revisions AHRS-2 Artificial Horizon and Magnetic Compass Indicator  Blaze AHRS-2 / MAG-2 Manual AHRS-4 Self Contained Artificial Horizon and Magnetic Compass Indicator Blaze AHRS-3 / MAG-1 Manual   ALT-6 Altimeter and Vertical Speed Indicator (VSI) Blaze Alt-6 Manual       ALT-7 Altimeter and Vertical Speed Indicator (VSI) with a transponder compatible RS232 & parallel Gillham code output Blaze Alt-7 Manual   ASI-5 Airspeed Indicator Blaze ASI-5 Manual ASV-2 Altimeter, Airspeed (ASI) and Vertical Speed Indicator (VSI) Blaze ASV-2 Manual EMS-2 Universal Engine Monitor Blaze EMS-2 Manual FF-5 Fuel Computer Blaze FF-5 Manual    Flight-3 Primary Flight Instrument Blaze FLIGHT-3 Manual   INFO-2 Information Display (G-Force meter, UTC and Local Time, Slip Indicator, Outside Air Temperature (OAT), Battery Voltage, Current and charge display, Flight Timer & Flight Log, Stopwatch, Coutdown Timer and Alarm) Blaze INFO-2 Manual MAG-2 Magnetic Compass Indicator Blaze MAG-2 Manual MAP-4 Manifold Pressure and RPM Indicator with OAT Blaze MAP-4 Manual RPM-2 Dual Channel Universal Engine / Rotor RPM Indicator Blaze RPM-2 Manual TC-5 4 Channel Thermocouple (EGT/CHT) Indicator Blaze TC-5 Manual TC-6 12 Channel Thermocouple (EGT/CHT) Indicator Blaze TC-6 Manual TP-4 4 Channel Universal Analog Input (Pressure / Temperature / Current / Volts) Indicator) Blaze TP-4 Manual
