Vega Series...

The Stratomaster Vega range consists of twelveAHRS-1 Pic 2 1/4" color display based instruments.

Using a high resolution color graphics display, these instruments provide excellent daylight readability, even in direct sunlight. In addition they all have built in backlighting making them easy to read at night time.

It includes a rotary control plus 2 independent keys for easy menu navigation and to access specific instrument features.

The Vega range also has a wide supply voltage range of 8 to 30V DC with with built in reverse and over voltage protection.

All engine monitoring Vega instruments have the ability to interface to a MGL Avionics RDAC unit.

The Vega series features:

  • Standard 2 1/4” aircraft enclosure (Can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Alarm output for alarm notification

  • Large backlit color graphic display

  • Multiple display screens (model dependent)

  • On board voltage reversal and over voltage protection for harsh electrical environments

  • Wide supply voltage range (8 to 30V DC)

  • Light weight design

  • Field upgradeable firmware

  • 1 year limited warranty


Vega Dimensions Vega dimensional drawing

Vega Firmware Upgrade Procedure Vega firmware upgrade procedure

Zip Icon Vega Firmware

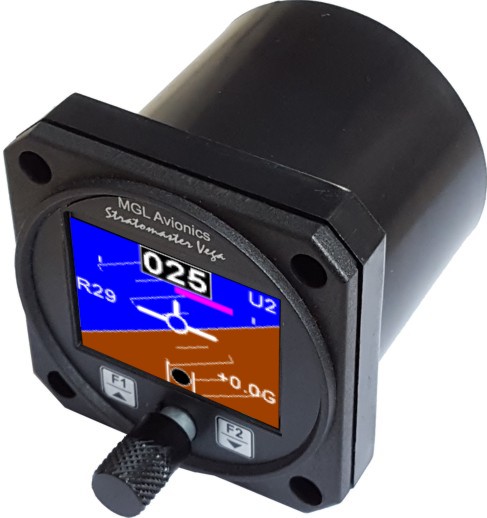

AHRS-1 Pic
AHRS-1
Artificial Horizon and Magnetic Compass Indicator
ALT-5 Pic
ALT-5
Altimeter and Vertical Speed Indicator (VSI)

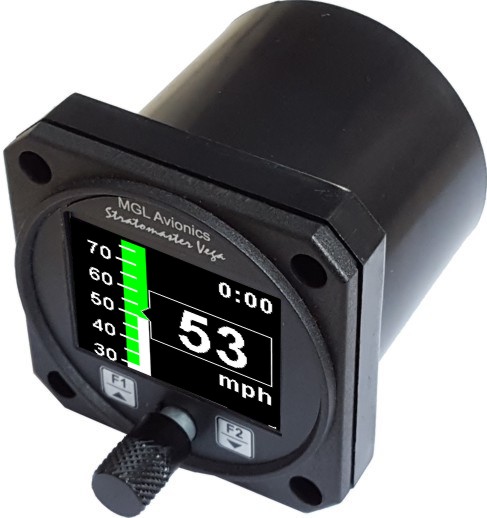

ASI-4 Pic
ASI-4
Airspeed Indicator

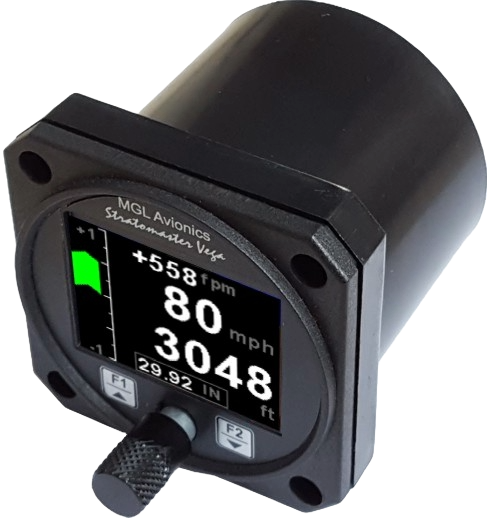

ASV-1
ASV-1
Altimeter, Airspeed (ASI) and Vertical Speed Indicator (VSI)

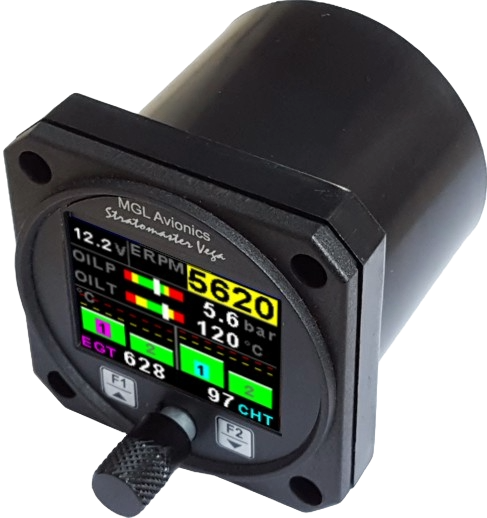

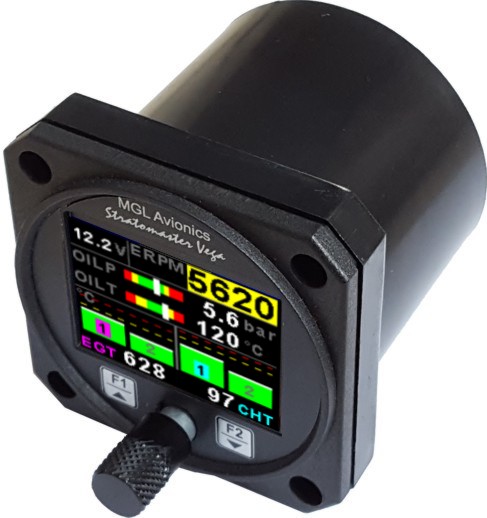

EMS-1
EMS-1
Universal Engine Monitor

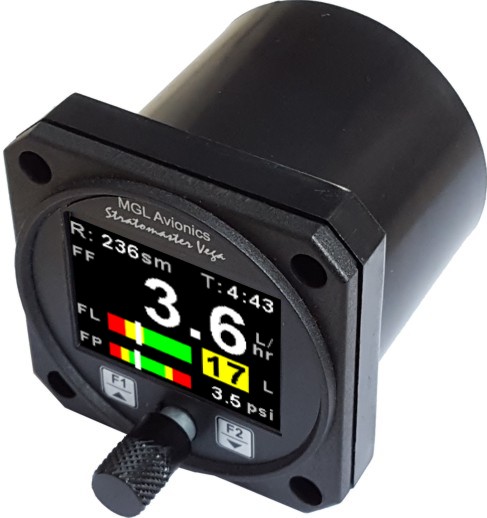

 FF-4 Pic
FF-4
Fuel Computer

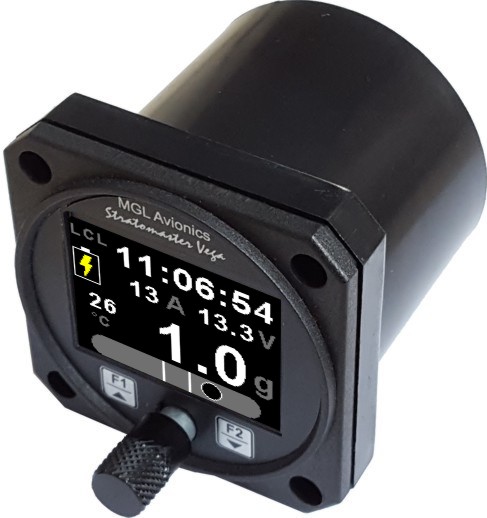

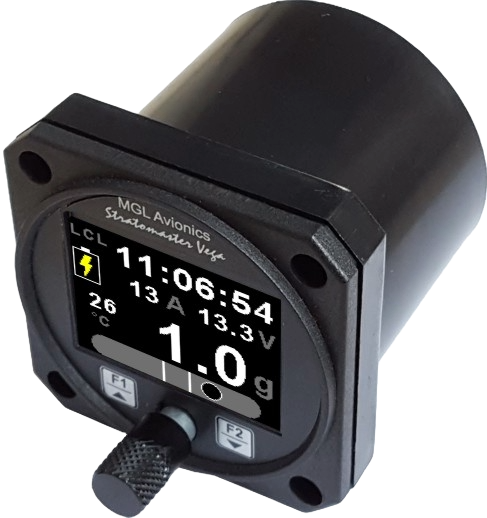

INFO-1 Pic
INFO-1
Information Display (G-Force meter, UTC and Local Time, Slip Indicator, Outside Air Temperature (OAT), Battery Voltage, Current and charge display, Flight Timer & Flight Log, Stopwatch, Coutdown Timer and Alarm)

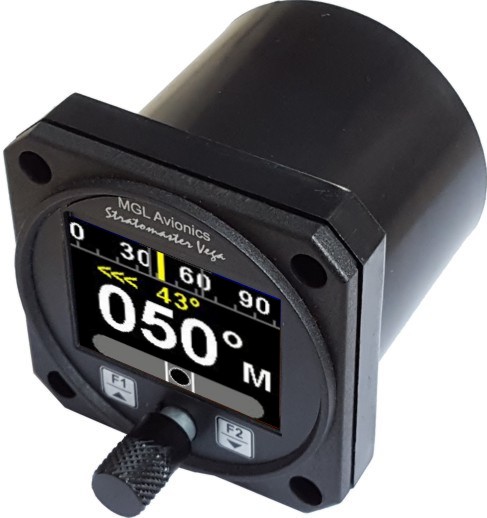

 MAG-1 Pic
MAG-1
Magnetic Compass Indicator

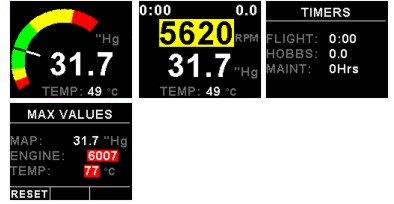

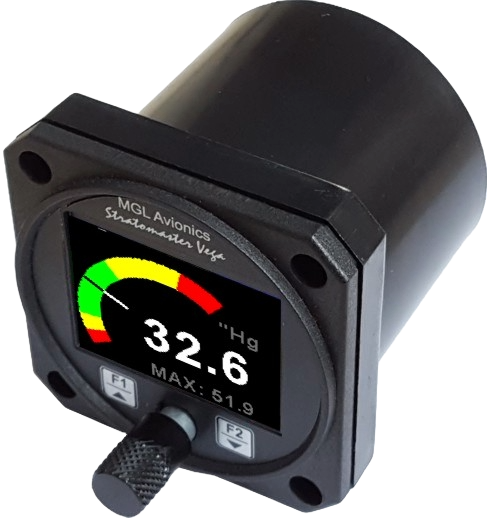

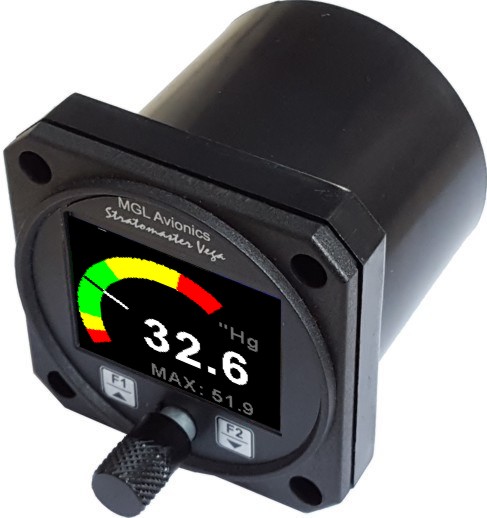

MAP-3 Pic
MAP-3
Manifold Pressure and RPM Indicator

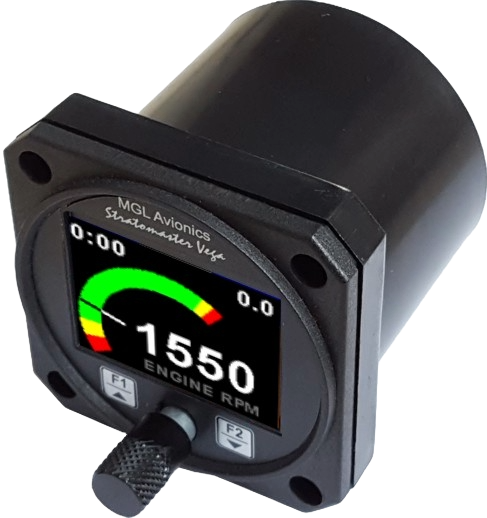

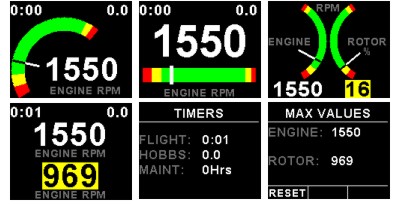

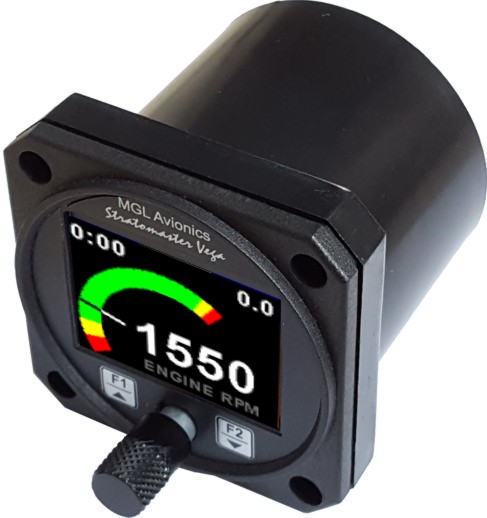

RPM-1 Pic
RPM-1
Universal Engine / Rotor RPM Indicator

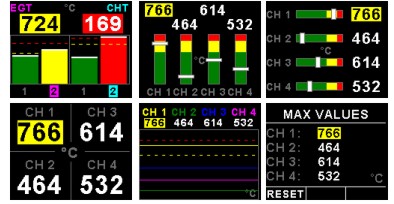

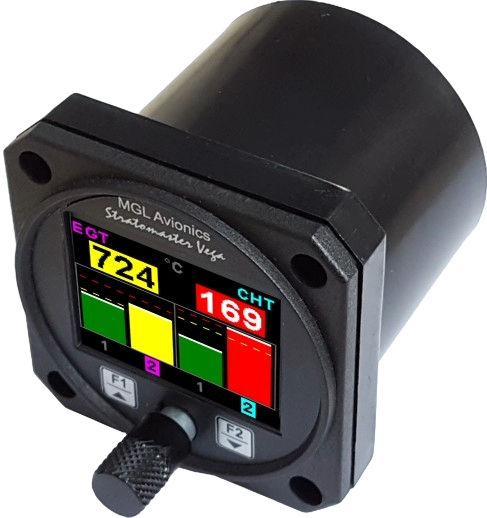

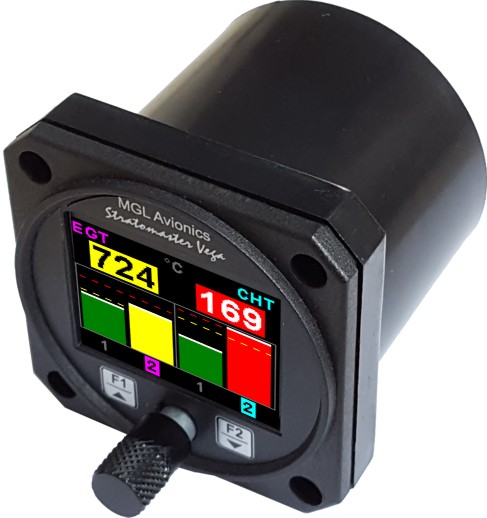

 TC-4 Pic
TC-4
4 Channel Thermocouple (EGT/CHT) Indicator

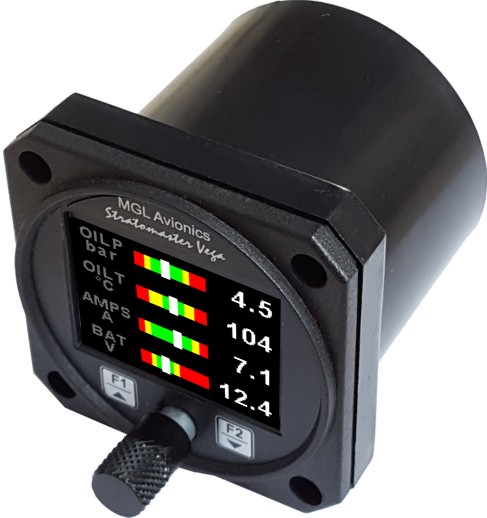

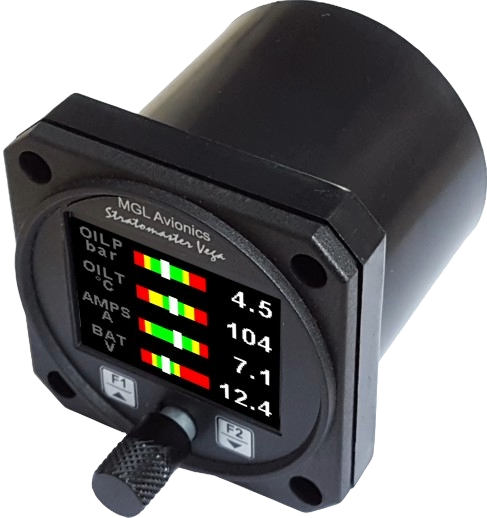

TP-3 Pic
TP-3
4 Channel Universal Analog Input (Pressure / Temperature / Current / Volts) Indicator)

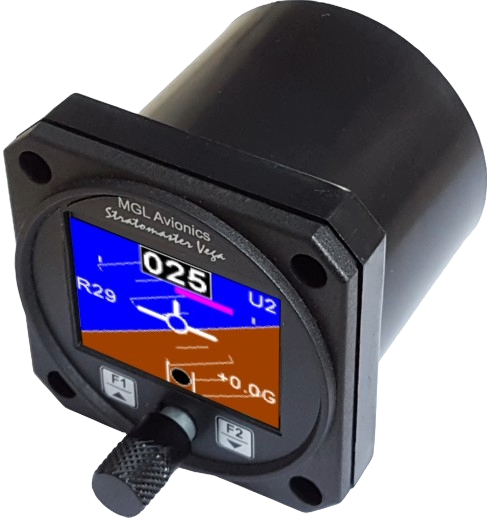

AHRS-1 Artificial horizon and magnetic compass indicator

  AHRS-1 PicAHRS-1 All

AHRS-1 Manual AHRS-1 / Mag-1 Manual

The AHRS-1 / MAG-1 is a 2 1/4” sunlight readable color display instrument providing a display for an artificial horizon reference system (AHRS), an advanced digital compass, or both depending on which sensor packages is connected.

The AHRS-1 / MAG-1 can be setup to display the following:

  • Compass with optional slip indicator (requires MGL Avionics SP-6 sensor package)

  • Horizon with optional slip, turn indicator & G-Force (requires MGL Avionics SP-7/9 sensor package)

  • Turn and bank indicator (requires MGL Avionics SP-7/9 sensor package)

  • Combined compass and horizon display with bank indicator, optional slip indicator & G-Force (requires MGL Avionics SP6 & SP-7/9 sensor packages)

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Artificial horizon reference system (AHRS) display unit with slip indication, turn and bank and G-Force indication

  • Advanced magnetic compass with a course steering feature and slip indication

  • Can be setup as an individual compass display, artificial horizon or both

  • The AHRS-1 / MAG-1 is connected to the AHRS / Compass sensor packages by a simple CAN bus interface. This allows for the optimum placement of the sensor packages in the aircraft

  • More then one AHRS-1 / MAG-1 unit can be connected onto the CAN bus. This allows the compass, artificial horizon and the turn and bank indicator to be displayed on different units

  • G-Force indicator (MGL Avionics SP7 required)

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when a high alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty

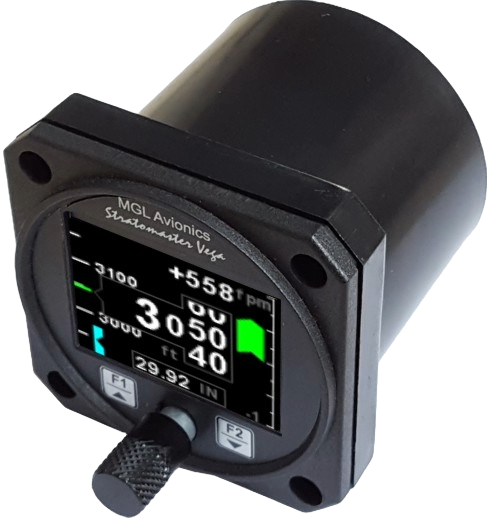

ALT-5 Altimeter and Vertical Speed Indicator (VSI)

ALT-5 Pic ALT-5 All

ALT-5 Manual ALT-5 Manual

The ALT-5 is a 2 1/4” sunlight readable encoding altimeter and a wide range vertical speed indicator.

The altimeter contains an internal high accuracy 24 bit digital altitude sensor which calculates altitude from -1000 ft up to a maximum of 35000 ft. The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc. The altimeter can display altitude in feet or meters and local pressure can be set in millibars or inches of mercury

The VSI indicator can be displayed in either feet/minute (ft/min) or meters/second (m/s). The VSI can be calibrated by the user once the instrument has been installed in the aircraft.

The ALT-5 also features a user settable altitude bug and an encoder test function. The ALT-5 provides a parallel Gillham code interface when used in conjunction with the MGL Avionics CNV-ALT.

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • An internal high accuracy 24 bit digital altitude sensor calculates altitude from –1000 ft up to a maximum of 35000 ft (-304m to 10668m)

  • The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc.

  • Provides a parallel Gillham code interface for transponders when used in combination with the MGL Avionics CNV-ALT

  • Built in encoder test function

  • The altimeter can display altitude in feet or meters

  • Local pressure can be set in millibars or inches of mercury

  • Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10000 ft/min

  • VSI units can be in feet/minute (ft/min) or in meters/second (m/s)

  • User settable altitude bug

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty

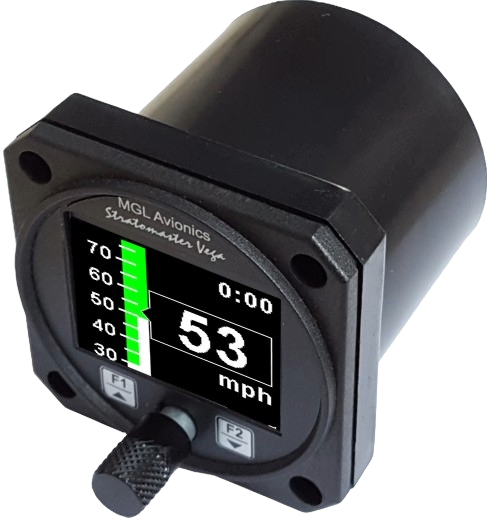

ASI-4 Airspeed Indicator (ASI)

ASI-4 PicASI-4 All

ASI-4 Manual ASI-4 Manual

The ASI-4 is a 2 1/4” sunlight readable instrument that provides a wide range airspeed indication in both digital and analog tape formats. Airspeed is based on the pressure generated by a pitot tube system and a static port is provided as well for use by high speed aircraft. In addition, the ASI-4 provides a flight timer since takeoff and records the maximum airspeed reached.

Airspeed can be indicated in statute miles per hour (mph), kilometers per hour (km/h) or nautical miles per hour (kts). The analog airspeed tape can be scaled according to the aircraft’s flying speed range and ranges for Vs0, Vs1, Vfe, Vno and Vne can be set. The ASI-4 also provides a programmable Vs and Vne airspeed alarm output. ASI sensitivity can be calibrated by the user to cater for errors caused by pitot tube placement.

The ASI-4 instrument measures airspeed from 16mph to 250mph and is well suited to slower aircraft due to very good sensitivity and linearity at low air speeds.

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Measures airspeed from 16mph to 250mph and is well suited to slow aircraft due to very good sensitivity and linearity at low air speeds

  • Includes a flight timer since takeoff

  • Airspeed units can be set to miles per hour (mph), kilometer per hour (km/h) or nautical miles per hour (kts)

  • Analog tape with programmable ranges for Vs0, Vs1, Vfe, Vno and Vne

  • Contains a programmable Vs and Vne airspeed alarm output

  • Records maximum airspeed reached in permanent memory

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty

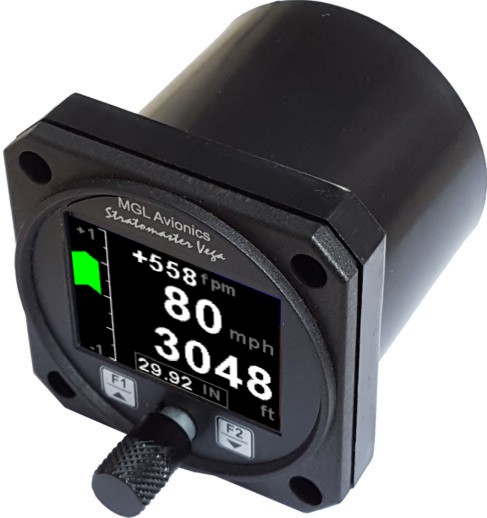

ASV-1 Altimeter, Airspeed (ASI) and Vertical Speed Indicator (VSI)

ASV-1 Pic ASV-1 All

ASV-1 Manual ASV-1 Manual

The ASV-1 is a 2 1/4” sunlight readable encoding altimeter, airspeed and wide range vertical speed indicator.

The altimeter contains an internal high accuracy 24 bit digital altitude sensor which calculates altitude from -1000 ft up to a maximum of 35000 ft. The ASV-1 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc. The altimeter can display altitude in feet or meters and local pressure can be set in millibars or inches of mercury

The VSI indicator can be displayed in either feet/minute (ft/min) or meters/second (m/s). The VSI can be calibrated by the user once the instrument has been installed in the aircraft.

Airspeed is based on the pressure generated by a pitot tube system and a static port is provided as well for use by high speed aircraft. The ASV-1 instrument measures airspeed from 16mph to 250mph and is well suited to slower aircraft due to very good sensitivity and linearity at low air speeds. Airspeed can be indicated in statute miles per hour (mph), kilometers per hour (km/h) or nautical miles per hour (kts). The ASV-1 also provides a programmable Vs and Vne airspeed alarm output. ASI sensitivity can be calibrated by the user to cater for errors caused by pitot tube placement.

In addition, the ASV-1 provides an encoder test function, flight timer since takeoff and records the maximum airspeed reached. The ASV-1 provides a parallel Gillham code interface when used in conjunction with the MGL Avionics CNV-ALT.

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • An internal high accuracy 24 bit digital altitude sensor calculates altitude from –1000 ft up to a maximum of 35000 ft (-304m to 10668m)

  • The ASV-1 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc.

  • Provides a parallel Gillham code interface for transponders when used in combination with the MGL Avionics CNV-ALT

  • Built in encoder test function

  • The altimeter can display altitude in feet or meters

  • Local pressure can be set in millibars or inches of mercury

  • Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10000 ft/min

  • VSI units can be in feet/minute (ft/min) or in meters/second (m/s)

  • Measures airspeed from 16mph to 250mph and is well suited to slow aircraft due to very good sensitivity and linearity at low air speeds

  • Includes a flight timer since takeoff

  • Airspeed units can be set to miles per hour (mph), kilometer per hour (km/h) or nautical miles per hour (kts)

  • Contains a programmable Vs and Vne airspeed alarm output

  • Records maximum airspeed reached in permanent memory

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty


FF-4 Fuel Computer

FF-4 PicFF-4 All

FF-4 manual FF-4 Manual

The FF-4 is a 2 1/4” sunlight readable color display instrument intended for efficient monitoring of fuel related information for single or dual fuel tanks. The FF-4 has many display configurations based on single/dual flow senders, single/dual level senders and a fuel pressure sender.

Full functionality is available with a fuel flow and level sender or only with a fuel flow sender using calculated fuel levels based on fuel usage. Differential fuel flow calculations are also supported for fuel return systems. Fuel injector systems are also supported. Standard automotive fuel level senders can be used, even with odd shaped tanks due to a comprehensive, multi-point calibration system. Most fuel flow senders can be used as the K-factor of the sender can be entered into the system for simple calibration.

MGL Avionics supplies a lightweight dual range fuel flow sender that is ideally suited for the FF-4. Fuel flow senders from other manufactures (e.g. Floscan) are equally suitable.

In addition, the FF-4 can use the actual ground speed from a RS232 NMEA enabled GPS receiver to determine fuel range.

The FF-4 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

Features

  • 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Advanced fuel computer with various modes of operation

  • Supports single or dual fuel tanks

  • The FF-4 can connect to one or two fuel flow senders, fuel level senders or fuel injectors

  • The FF-4 can connect to a single fuel pressure sender

  • Differential fuel flow calculations are also supported for fuel return systems

  • The FF-4 has the ability to connect to a NMEA enabled RS232 GPS receiver for range based calculations. It can also accept a manually entered estimate cruising speed if a GPS is not available.

  • Standard automotive fuel level senders can be used, even with odd shaped tanks due to a comprehensive, multi-point calibration system

  • External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when an alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty


INFO-1 Information Display

INFO-1 Pic

INFO-1 Manual  INFO-1 Manual

The INFO-1 is a 2 1/4” sunlight readable multifunction color display instrument. The INFO-1 has the following features:

G-force meter

The INFO-1 is capable of measuring g-forces exerted in an aircraft up to +-16g. The INFO-1 also has the facility to record the maximum positive and negative g-forces encountered (typically during a flight) in permanent memory, with a password protected reset facility. It also features two independent cycle counters to capture the amount of times a preset force has been exceeded. The INFO-1 is able to measure g-forces even if the instrument is not mounted exactly on the vertical axis of the aircraft.

UTC and Local Time display

The INFO-1 is capable of displaying both UTC (as known as Zulu time) and local time to facilitate ordinary ATC time reporting. Time is maintained by an internal lithium battery which can be replaced by the user.

Slip indicator

The INFO-1 can display a slip indicator. The slip indicator can be disabled in the menu system.

Battery Voltage, *Current and Charge display

The INFO-1 can be used to monitor your aircraft’s battery power supply. The INFO-1 is very useful in determining your battery’s health, charging status, as well as the current load consumption of your aircraft. The INFO-1 can be used in both 12V and 24V aircraft and can measure voltages up to 30V DC.

The INFO-1 uses the MGL Avionics magnetic field or active current shunt to measure the aircrafts current load. The INFO-1 contains a programmable low/high voltage alarm to automatically detect bad batteries and alternator failures. The maximum and minimum voltage reached is also recorded in permanent memory.

OAT display

OAT can be shown in either degrees Celsius or degrees Fahrenheit. The INFO-1 also contains a programmable low/high OAT alarm. The maximum and minimum OAT reached is also recorded in permanent memory.

Flight Timer & Flight log

The INFO-1 provides a 50 entry flight log that stores the start time and duration of each of the last 50 flights. The flight timer can either be started using a front push button or from a remote input.

Stopwatch, Countdown Timer & Alarm

Stopwatch and timers can be operated simultaneously to a programmable alarm, making the INFO-1 particularly suitable for sport flying competitions.

Features

  • 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • G-force range of +-16g

  • Records the maximum positive and negative g-forces encountered (typically during a flight) in permanent memory, with a password protected reset facility

  • Two independent cycle counters capture the amount of times a preset force has been exceeded

  • Able to measure G-forces even if the instrument is not mounted exactly on the vertical axis of the aircraft

  • Capable of displaying both UTC (Zulu time) and local time

  • Time is maintained by an internal lithium battery which can be replaced by the user

  • Can measure voltages up to 30V (compatible with both 12V and 24V aircraft supplies)

  • Contains a programmable low/high voltage alarm to automatically detect alternator failures and bad batteries

  • Uses the MGL Avionics magnetic field or active current shunt to measure the aircrafts current load.

  • *Contains a charge status indicator

  • OAT can be shown in degrees Celsius or degrees Fahrenheit

  • Contains a programmable low/high OAT alarm

  • Provides a 50 entry flight log that stores the start time and duration of each of the last 50 flights

  • The flight timer can either be started using a front push button or from a remote input

  • Stopwatch and timers can operate simultaneously to a programmable alarm

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when an alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty

* Requires the MGL Avionics Magnetic Current or Active Current Shunt

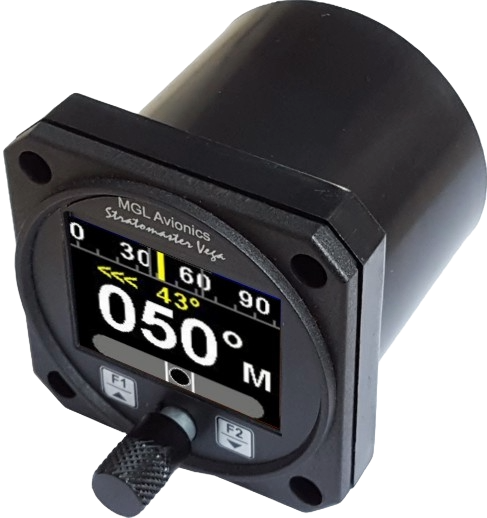

MAG-1 Magnetic Compass Indicator

MAG-1 Pic MAG-1 ALL

MAG-1 PIC AHRS-1 / MAG-1 Manual

The AHRS-1 / MAG-1 is a 2 1/4” sunlight readable color display instrument providing a display for an artificial horizon reference system (AHRS), an advanced digital compass, or both depending on which sensor packages is connected.

The AHRS-1 / MAG-1 can be setup to display the following:

  • Compass with optional slip indicator (requires MGL Avionics SP-6 sensor package)

  • Horizon with optional slip, turn indicator & G-Force (requires MGL Avionics SP-7/9 sensor package)

  • Turn and bank indicator (requires MGL Avionics SP-7/9 sensor package)

  • Combined compass and horizon display with bank indicator, optional slip indicator & G-Force (requires MGL Avionics SP6 & SP-7/9 sensor packages)

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Artificial horizon reference system (AHRS) display unit with slip indication, turn and bank and G-Force indication

  • Advanced magnetic compass with a course steering feature and slip indication

  • Can be setup as an individual compass display, artificial horizon or both

  • The AHRS-1 / MAG-1 is connected to the AHRS / Compass sensor packages by a simple CAN bus interface. This allows for the optimum placement of the sensor packages in the aircraft

  • More then one AHRS-1 / MAG-1 unit can be connected onto the CAN bus. This allows the compass, artificial horizon and the turn and bank indicator to be displayed on different units

  • G-Force indicator (MGL Avionics SP7 required)

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when a high alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty


MAP-3 Manifold Pressure and RPM Indicator

MAP-3 PicMAP-3 All

MAP-3 Manual MAP-3 Manual

The MAP-3 is a 2 1/4” sunlight readable Manifold pressure indicator which can simultaneously display RPM and temperature from a universal RPM and temperature input.

The manifold pressure display is also available in the form of a scalable analog bar graph, if the RPM input is not displayed.

The MAP-3 also has a Hobbs meter (can be set to the current engine time) which is password protected, an engine running timer / flight timer and a programmable maintenance timer to schedule routine engine maintenance.

The MAP-3 also features a programmable low/high alarm for manifold pressure, RPM and temperature. A handy magneto check function is also available to easy diagnose magneto problems. The MAP-3 also records the maximum manifold pressure, RPM and temperature reached in permanent memory.

The MAP-3 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Manifold pressure, RPM and Temperature indicator

  • Manifold pressure can be displayed in millibar (mB) or in inches of Mercury (“Hg”)

  • Scalable analog manifold pressure bar graph

  • Temperature can be displayed in degrees Celsius or in degrees Fahrenheit

  • Includes a settable Hobbs meter which is password protected

  • Includes an engine running and flight timer

  • Includes a programmable maintenance timer for scheduled routine engine maintenance

  • Includes a magneto check function

  • Records maximum MAP, RPM and temperature reached in permanent memory

  • A programmable low/high alarm for manifold pressure, RPM and temperature

  • External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty


RPM-1 Universal Engine / Rotor RPM Indicator

RPM-1 PicRPM-1 All

RPM-1 Manual RPM-1 Manual

The RPM-1 is a 2 1/4” sunlight readable color display instrument providing two universal RPM inputs that is primarily intended to measure engine and/or rotor RPM.

The display can be configured to display single or dual RPM or it can be configured to display engine and rotor RPM as used in helicopters and gyroplanes.

The RPM-1 also has a maximum values display screen as well as a handy magneto check function to easy diagnose magneto problems.

The RPM-1 includes a number of timers such as a Hobbs meter which can be set to the current engine time and is also password protected, an engine running and flight timer as well as a programmable maintenance timer to schedule routine engine maintenance.

The RPM-1 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

 Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Single or dual RPM display screens

  • Dedicated dual rotor / engine tachometer

  • Includes a settable Hobbs meter which is password protected

  • Includes an engine running and flight timer

  • Includes a programmable maintenance timer for scheduled routine engine maintenance

  • Includes a magneto check function

  • Records maximum RPM reached for each channel

  • External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when a high alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty


TC-4 4 Channel Thermocouple (EGT/CHT) Indicator

TC-4 PicTC-4 All

TC-4 Manual TC-4 Manual

The TC-4 is a 2 1/4” sunlight readable 4 channel thermocouple color display instrument.

The instrument can be configured for 5 different temperature display screens. The display can be configured to group EGTs and CHTs to common settings or each thermocouple channel can be independently displayed with individual programmable high alarm and probe type. The TC-4 also has a trend graph and maximum values display screen.

The TC-4’s high accuracy is due to its built in thermocouple linearization curves and cold junction compensation techniques. Temperature probes can be common J, K or E type thermocouple probes as used in CHT and EGT senders. Temperatures can be displayed in degrees Celsius or degrees Fahrenheit from -100ºC to 1200ºC (-148ºF to 2192ºF).

The TC-4 also features a built in engine leaning facility which allows the pilot to optimize the fuel mixture according to peak EGT temperatures as well as a cruise mode facility to provide instant identification of changing EGT/CHT trends.

The TC-4 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • 5 different temperature display screens

  • Supports J, K and E type thermocouple probes

  • Temperatures can be displayed in ºC or ºF from -100ºC to 1200ºC (-148ºF to 2192ºF)

  • High accuracy: Built in thermocouple linearization curves and cold junction compensation

  • Records maximum temperatures reached for each channel

  • Includes a trend graph display of each thermocouple channel

  • Engine leaning function according to peak EGT temperatures

  • Engine cruise mode to instantly identify changing EGT/CHT trends

  • External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when a high alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty


TP-3 4 Channel Universal Analog Input (Pressure/Temperature/Current/Volts) Indicator

TP-3 Pic

TP-3 Manual TP-3 Manual

The TP-3 is a 2 1/4” sunlight readable 4 channel universal analog input color display instrument. Each channel can be individually programmed to display either pressure, temperature, current or volts from a universal analog input that can interface to many sensors such as oil temperature, coolant temperature, oil pressure, fuel pressure, manifold pressure, boost pressure and many more.

The TP-3 can display any combination of 1 to 4 analog channels in a horizontal / vertical bargraph or a numeric display format.

Pressure can be measured using standard automotive resistive senders (e.g. VDO 2, 5 and 10 Bar), Rotax 4-20mA senders as well as voltage output pressure senders (e.g. UMA). Temperature can be measured using standard automotive resistive senders (e.g. VDO, Westach) as well as the MGL Avionics precision LM335 semiconductor sensor. In addition the temperature, pressure and current inputs can be programmed to a user defined curve for custom senders.

All analog channels have a programmable low and high alarm. This results in a contact closure that is typically used to switch a warning lamp on. The TP-3 also records the minimum and maximum values reached for each channel in permanent memory.

The TP-3 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

Features

  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Four universal analog inputs that can be used for pressure / temperature / current or volts

  • Pressure can be measured using standard automotive resistive senders (e.g. VDO 2, 5 and 10Bar), Rotax 4-20mA senders as well as voltage output pressure senders (e.g. UMA)

  • Temperature can be measured using standard automotive resistive senders (e.g. VDO, Westach) as well as the MGL Avionics precision LM335 semiconductor sensor

  • High accuracy: Built in linearization curves for common senders

  • Analog channels can be programmed to a user defined curve for custom senders

  • Supports the Rotax 4-20mA pressure sender as used in the 912/914 engines

  • Temperatures can be displayed in ºC or ºF

  • Pressure can be displayed in psi or bar

  • Records minimum and maximum values reached for each channel

  • External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when a high alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  • 1 year limited warranty



News

Infiniteq launches Blaze Series

InfiniteQ launches their new color 3.125" avionics range

Infiniteq launches Vega Series

InfiniteQ launches their new color 2.25" avionics range




  Company Products Support
About Us Avionics Warranty Policy
Employment Opportunities Automotive Email Policy
Mission Statement Process Control Manuals
  Radio Products Software

Copyright © 2019 InfiniteQ cc. All rights reserved.
