Radio Modems
 |
 |

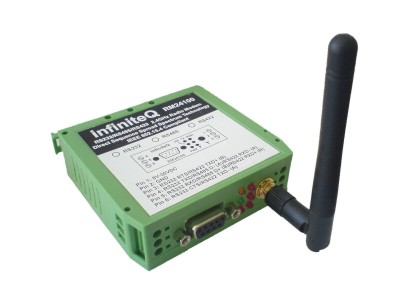

| RM24100D
(DIN Rail) |

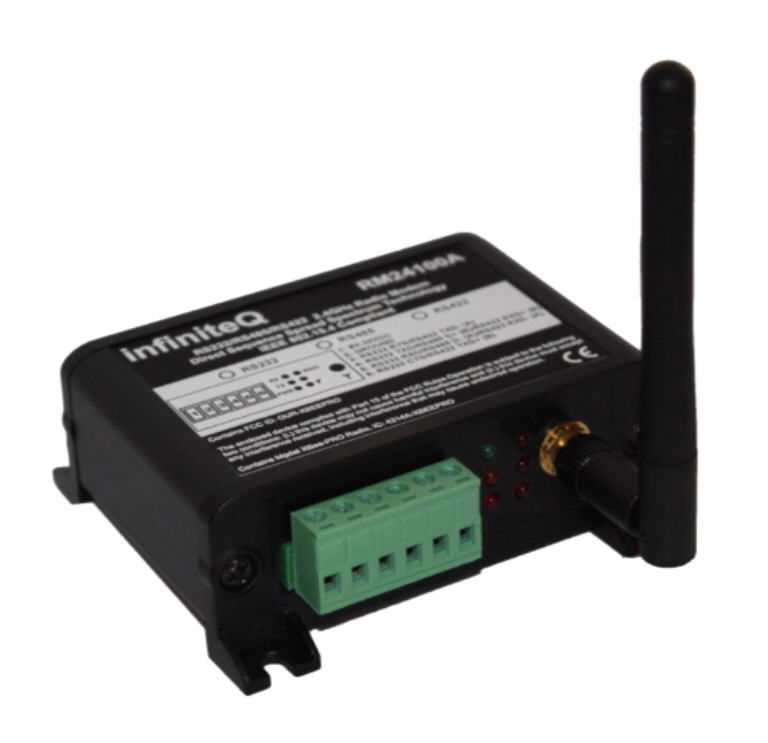

RM24100A (Aluminium Enclosure) |
The InfiniteQ radio modems act as a
wireless serial cable replacement and can wirelessly connect
various devices
together for a large range of applications. They are ideally
suited for telemetry, SCADA and data acquisition systems. The
current range supports Peer to Peer, Peer to Multipoint and
Multipoint to Multipoint network topography's. Serial data
interfaces include RS232, RS485 or RS422.
The radio modems are packaged either in a DIN rail mount
enclosure (RM24100D) or in an aluminium enclosure (RM24100A).
| |
RM24100A |
RM24100D |
| Frequency
Band |
2.4GHz ISM band
(2407.5-2467.5MHz) |
|
Protocol |
Proprietary, IEEE 802.15.4
compliant |
| Number of
channels |
12 direct sequence
channels |
| Transmit
Power |
63mW (18dBm) conducted, 100mW
(20dBm) EIRP with a 2.1dBi dipole antenna
(Output transmit power
is configurable via software)*,** |
| Range |
Indoor/urban
(+-90m/300ft), outdoor/line-of-sight (+-1km/0.6 miles) |
|
RF Data Rate |
250 kbps |
| Interface
data rate |
1200 to 115200 bps |
| Enclosure
material |
Aluminium |
Nylon |
| Enclosure
Dimensions |
76mmx88mmx32mm |
79.5mmx85.5mmx25mm (din rail mount) |
| Enclosure
color |
Black |
Green |
| Agency
approved internal radio
module |
ICASA Type approval number TA-2013/1354 *
(Only the internal radio module within the RM24100X has
the specified agency approval) |
| Operating
Temperature range |
industrial temperature range-40°C
to 85°C (14°F to 122°F) |
| Power
Supply |
8 to 30VDC switch mode power
supply with built in over voltage and
reverse voltage protection |
| Antenna
connector |
RPSMA (reverse
polarity SMA) |
* Maximum transmit power output levels
and local radio frequency regulator bodies must be obeyed in the
country of operation.
Manuals
RM24100A (2.4GHz 100mW
RS232/RS485/RS422 DSSS Radio Modem Aluminium enclosure)
RM24100D (2.4GHz 100mW RS232/RS485/RS422 DSSS Radio Modem DIN
Rail enclosure)
Radio Modem AT commands
Antennas
2.4 GHz Antenna
Software
RMConfig
Configuration software for the RM24100X radio
modems.
RMConfig.zip (348kb)
|
|
